to convert high voltage AC mains electricity to a suitable low voltage supply for electronics circuits and other devices. A more reliable method of obtaining DC. LINEAR VOLTAGE REGULATORS. Introduction. The linear regulator is the basic building block of nearly every power supply used in electronics. The IC linear. transients at the time of switching on the input power or when step load changes occur. — The output impedance of the voltage regulator is complex.


Author:MARCELINE SUDDOTH
Language:English, Spanish, Japanese
Country:Malaysia
Genre:Environment
Pages:634
Published (Last):20.02.2016
ISBN:233-6-49417-484-9
ePub File Size:18.54 MB
PDF File Size:8.29 MB
Distribution:Free* [*Regsitration Required]
Downloads:38248
Uploaded by: BONITA

A voltage regulator is a system designed to automatically maintain a constant voltage level. .. Linear & Switching Voltage Regulator Handbook; ON Semiconductor; pages; ; HB/D.(Free PDF download). Positive voltage regulator ICs. Datasheet - production data. Features. • Output current up to A. • Output voltages of 5; 6; 8; ; 9; 12; 15; 18;. When the ac input (line) voltage of a power supply changes, an electronic circuit called a regulator maintains a nearly constant output voltage. • Line regulation.

The first automatic voltage regulators for generators were electromechanical systems, but a modern AVR uses solid-state devices. An AVR is a feedback control system that measures the output voltage of the generator, compares that output to a set point, and generates an error signal that is used to adjust the excitation of the generator.

As the excitation current in the field winding of the generator increases, its terminal voltage will increase. The AVR will control current by using power electronic devices; generally a small part of the generator's output is used to provide current for the field winding.

Where a generator is connected in parallel with other sources such as an electrical transmission grid, changing the excitation has more of an effect on the reactive power produced by the generator than on its terminal voltage, which is mostly set by the connected power system. Where multiple generators are connected in parallel, the AVR system will have circuits to ensure all generators operate at the same power factor.

AC voltage stabilizers[ edit ] Coil-rotation AC voltage regulator[ edit ] Basic design principle and circuit diagram for the rotating-coil AC voltage regulator.

This is an older type of regulator used in the s that uses the principle of a fixed-position field coil and a second field coil that can be rotated on an axis in parallel with the fixed coil, similar to a variocoupler. When the movable coil is positioned perpendicular to the fixed coil, the magnetic forces acting on the movable coil balance each other out and voltage output is unchanged.

Rotating the coil in one direction or the other away from the center position will increase or decrease voltage in the secondary movable coil.

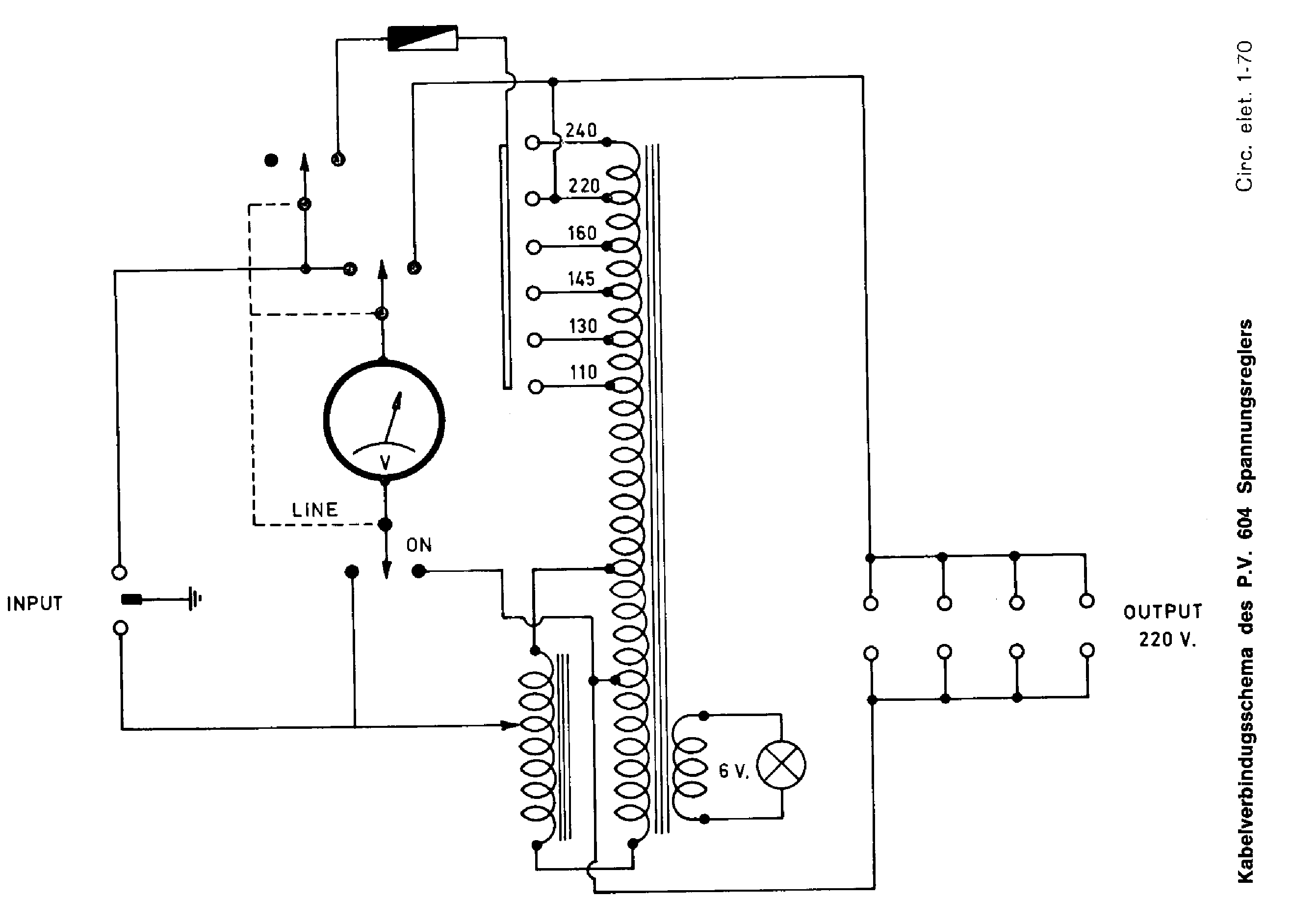

This type of regulator can be automated via a servo control mechanism to advance the movable coil position in order to provide voltage increase or decrease. A braking mechanism or high ratio gearing is used to hold the rotating coil in place against the powerful magnetic forces acting on the moving coil. Magnetic mains regulator Electromechanical[ edit ] Electromechanical regulators called voltage stabilizers or tap-changers, have also been used to regulate the voltage on AC power distribution lines.

These regulators operate by using a servomechanism to select the appropriate tap on an autotransformer with multiple taps, or by moving the wiper on a continuously variable auto transfomer. If the output voltage is not in the acceptable range, the servomechanism switches the tap, changing the turns ratio of the transformer, to move the secondary voltage into the acceptable region. The controls provide a dead band wherein the controller will not act, preventing the controller from constantly adjusting the voltage "hunting" as it varies by an acceptably small amount.

Constant-voltage transformer[ edit ] The ferroresonant transformer, ferroresonant regulator or constant-voltage transformer is a type of saturating transformer used as a voltage regulator.

These transformers use a tank circuit composed of a high-voltage resonant winding and a capacitor to produce a nearly constant average output voltage with a varying input current or varying load. The circuit has a primary on one side of a magnet shunt and the tuned circuit coil and secondary on the other side.

The regulation is due to magnetic saturation in the section around the secondary. The ferroresonant approach is attractive due to its lack of active components, relying on the square loop saturation characteristics of the tank circuit to absorb variations in average input voltage.

Saturating transformers provide a simple rugged method to stabilize an AC power supply. Older designs of ferroresonant transformers had an output with high harmonic content, leading to a distorted output waveform.

Modern devices are used to construct a perfect sine wave. The ferroresonant action is a flux limiter rather than a voltage regulator, but with a fixed supply frequency it can maintain an almost constant average output voltage even as the input voltage varies widely.

The ferroresonant transformers, which are also known as Constant Voltage Transformers CVTs or ferros, are also good surge suppressors, as they provide high isolation and inherent short-circuit protection. Output power factor remains in the range of 0. In electromechanical regulators, voltage regulation is easily accomplished by coiling the sensing wire to make an electromagnet.

The magnetic field produced by the current attracts a moving ferrous core held back under spring tension or gravitational pull. As voltage increases, so does the current, strengthening the magnetic field produced by the coil and pulling the core towards the field.

The magnet is physically connected to a mechanical power switch, which opens as the magnet moves into the field. As voltage decreases, so does the current, releasing spring tension or the weight of the core and causing it to retract.

PDF file for voltage regulator modules

This closes the switch and allows the power to flow once more. If the mechanical regulator design is sensitive to small voltage fluctuations, the motion of the solenoid core can be used to move a selector switch across a range of resistances or transformer windings to gradually step the output voltage up or down, or to rotate the position of a moving-coil AC regulator.

Early automobile generators and alternators had a mechanical voltage regulator using one, two, or three relays and various resistors to stabilize the generator's output at slightly more than 6 or 12 V, independent of the engine 's rpm or the varying load on the vehicle's electrical system. Essentially, the relay s employed pulse width modulation to regulate the output of the generator, controlling the field current reaching the generator or alternator and in this way controlling the output voltage producing back into the generator and attempting to run it as a motor.

Voltage Regulators (Technical Library)

The rectifier diodes in an alternator automatically perform this function so that a specific relay is not required; this appreciably simplified the regulator design. More modern designs now use solid state technology transistors to perform the same function that the relays perform in electromechanical regulators. Electromechanical regulators are used for mains voltage stabilisation — see AC voltage stabilizers below.

Generators, as used in power stations or in standby power systems, will have automatic voltage regulators AVR to stabilize their voltages as the load on the generators changes.

The first automatic voltage regulators for generators were electromechanical systems, but a modern AVR uses solid-state devices. An AVR is a feedback control system that measures the output voltage of the generator, compares that output to a set point, and generates an error signal that is used to adjust the excitation of the generator. As the excitation current in the field winding of the generator increases, its terminal voltage will increase. The AVR will control current by using power electronic devices; generally a small part of the generator's output is used to provide current for the field winding.

Where a generator is connected in parallel with other sources such as an electrical transmission grid, changing the excitation has more of an effect on the reactive power produced by the generator than on its terminal voltage, which is mostly set by the connected power system. Where multiple generators are connected in parallel, the AVR system will have circuits to ensure all generators operate at the same power factor.

This is an older type of regulator used in the s that uses the principle of a fixed-position field coil and a second field coil that can be rotated on an axis in parallel with the fixed coil, similar to a variocoupler. When the movable coil is positioned perpendicular to the fixed coil, the magnetic forces acting on the movable coil balance each other out and voltage output is unchanged. Rotating the coil in one direction or the other away from the center position will increase or decrease voltage in the secondary movable coil.

This type of regulator can be automated via a servo control mechanism to advance the movable coil position in order to provide voltage increase or decrease. A braking mechanism or high ratio gearing is used to hold the rotating coil in place against the powerful magnetic forces acting on the moving coil. Electromechanical regulators called voltage stabilizers or tap-changers , have also been used to regulate the voltage on AC power distribution lines. These regulators operate by using a servomechanism to select the appropriate tap on an autotransformer with multiple taps, or by moving the wiper on a continuously variable auto transfomer.

If the output voltage is not in the acceptable range, the servomechanism switches the tap, changing the turns ratio of the transformer, to move the secondary voltage into the acceptable region. The controls provide a dead band wherein the controller will not act, preventing the controller from constantly adjusting the voltage "hunting" as it varies by an acceptably small amount.

The ferroresonant transformer , ferroresonant regulator or constant-voltage transformer is a type of saturating transformer used as a voltage regulator. These transformers use a tank circuit composed of a high-voltage resonant winding and a capacitor to produce a nearly constant average output voltage with a varying input current or varying load.

The circuit has a primary on one side of a magnet shunt and the tuned circuit coil and secondary on the other side. The regulation is due to magnetic saturation in the section around the secondary. The ferroresonant approach is attractive due to its lack of active components, relying on the square loop saturation characteristics of the tank circuit to absorb variations in average input voltage. Saturating transformers provide a simple rugged method to stabilize an AC power supply.

Older designs of ferroresonant transformers had an output with high harmonic content, leading to a distorted output waveform. Modern devices are used to construct a perfect sine wave. The ferroresonant action is a flux limiter rather than a voltage regulator, but with a fixed supply frequency it can maintain an almost constant average output voltage even as the input voltage varies widely. The ferroresonant transformers, which are also known as Constant Voltage Transformers CVTs or ferros, are also good surge suppressors, as they provide high isolation and inherent short-circuit protection.

The current-limiting capability also becomes a handicap when a CVT is used in an application with moderate to high inrush current like motors, transformers or magnets.

123seminarsonly.com

In this case, the CVT has to be sized to accommodate the peak current, thus forcing it to run at low loads and poor efficiency. Minimum maintenance is required, as transformers and capacitors can be very reliable. Some units have included redundant capacitors to allow several capacitors to fail between inspections without any noticeable effect on the device's performance.

Output voltage varies about 1. Drawbacks of CVTs are their larger size, audible humming sound, and the high heat generation caused by saturation.

Latest News

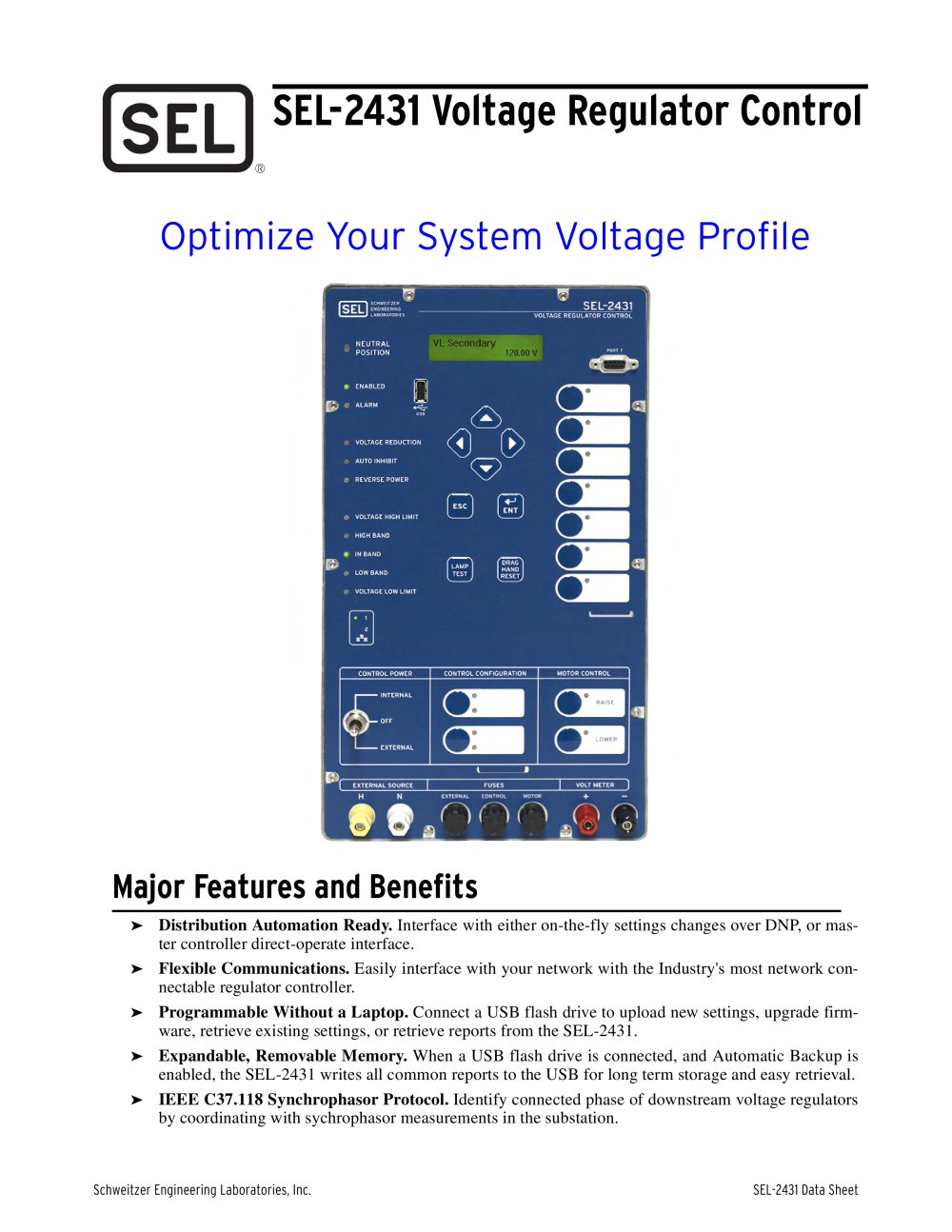

Voltage regulators or stabilizers are used to compensate for voltage fluctuations in mains power. Large regulators may be permanently installed on distribution lines. Small portable regulators may be plugged in between sensitive equipment and a wall outlet.

Automatic voltage regulators are used on generator sets on ships, in emergency power supplies, on oil rigs, etc. For example, when a large machine is turned on, the demand for power is suddenly a lot higher.

The voltage regulator compensates for the change in load. Servo stabilizers are also manufactured and used widely in Asia. An AC synchronous motor adjusts voltage in clockwise or anticlockwise direction and manages the output voltage with components like control card,dimmer,comparator, transistors, mocs, etc. Voltage regulators are used in devices like air conditioners, refrigerators, televisions etc.
